AP2-500-S 500mW Point Probe, 810nm

AP2-500-S 500mW Point Probe, 810nm product

    500MW POINT PROBE TIP:

Prices listed for US customers only and that all international customers need to contact our authorized distributors partners to obtain quotes.

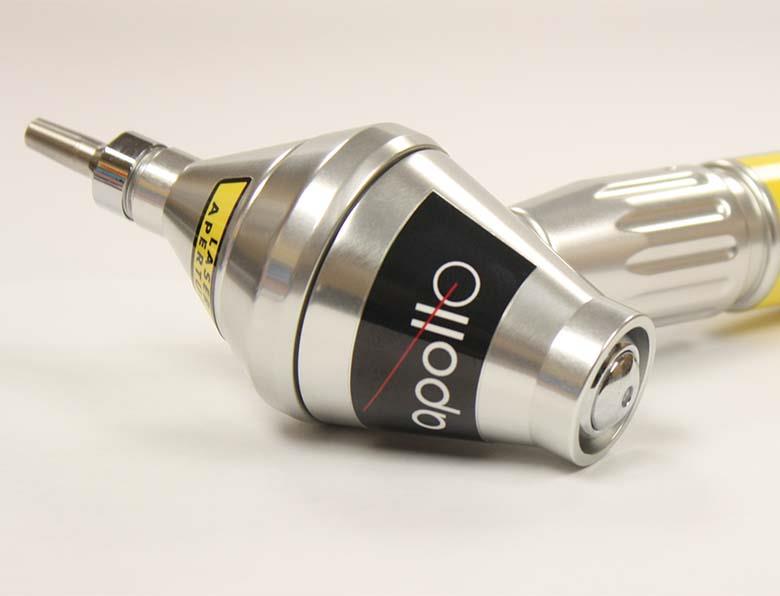

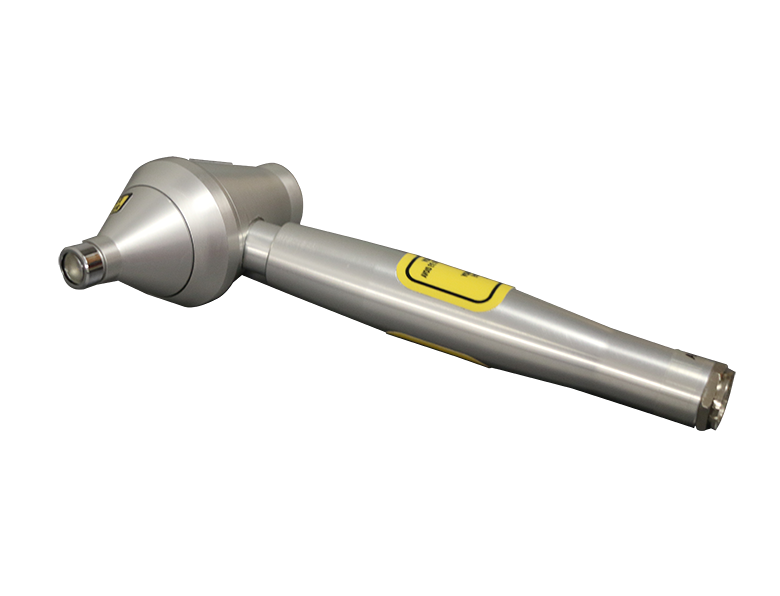

Our most delicate probe, the 500 mW Apollo Point Probe was specifically designed for hard-to-reach areas or those with less tissue, such as the hands, feet, neck and trigger points. Use it with either our desktop or portable laser unit. You can also choose to upgrade your probe by adding the Removable Fine-Tip Light Guide

Every Apollo point probe is crafted of aerospace-grade aluminum for cool performance; plus, medical-grade Class 4 laser diodes mean extra long life and reliability.

Standard Features:

  • Applicator Type: 500-S
  • Emitter Type: GaAlAs Semiconductor Laser
  • Emitter Wavelength: 810nm
  • Number of Emitters: 1
  • Beam Divergence: 9º x 38º
  • Total Power Output: 500mW
  • Aperture: 9.5mm
  • Polarization: Linear
  • Laser Classification: Class 4
  • Spot Size: 1.7 x 9.5mm, 0.161Cm2
  • 1/e2 Power Density (Irradiance): 2.68W/Cm2 (26,800Wm-2)
  • Treatment Time for 4 J/Cm2: 1.49 seconds
  • Total Energy delivery per minute: 30 Joules, 160.8 J/Cm2
  • NOHD: 80Cm
  • Safety goggle requirement: OD4 minimum @ 810nm

Optional Removable Finetip:
Upgrade the 500mW Apollo Probe with the Removable Fine-Tip Light Guide. Designed for use with both our Apollo Desktop and Portable units, the Fine-Tip gives clinicians the option of pinpointing very specific trigger points and other areas for treatment.

  • Spot Size: 1mm x 3mm

 Warranty


SKU: AP2-500-S

Summary
Base Price $1,697.00
Total $1,697.00

Due to the complexity of the product and freight cost, please contact us to complete the order. Cost is an estimate.
